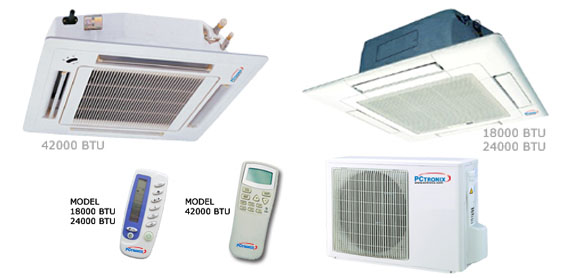

CASSETTE
SPLIT R22
PERFORMANCE
PARAMETERS |
||||
| MODEL | KF-50QW |
KF-70QW |
KFR-120QW/VS |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
18000/18800 |
24000/25600 |
42000/42800 |
| REFRIGERANT CHARGE AMOUNT | G(R22) |
1600 |
1950 |
4100 |
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
46/57 |
52/60 |
52/64 |
| AIR FLOW (INSIDE) | m3/h |
780 |
1250 |
1750 |
| CONSUMPTION | A/W |
9.0/1880 |
10.1/2200 |
8.3/4800 |
| NET WEIGHT INT/OUT | KG |
23/51 |
30/60 |
44/99 |
| DIMENSION WxHxD INT | mm |
570x570x300 |
950x950x240 |
950x950x365 |
| DIMENSION WxHxD OUT | mm |
920x355x600 |
920x375x730 |
950x360x855 |
| VOLTAGE | VOLT |
220 |
220 |
380 |
