CHILLER R22

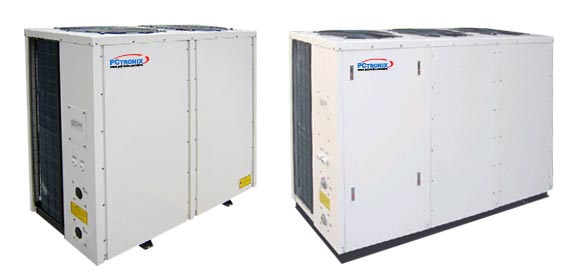

Air Cooled Water Chiller and Heat Pump

This series of product can be widely used in the commercial office building, high-class apartament houses, villas, and many other locations.

Multiple Energy Ajustment

The product adopts many compressors and multiple energy adjusting technology (any type with different series adjusting) so as to achieve reliable and economical together. If you adopt the PHNIX special energy storage tank (for option), you will realize the perfect association with unit energy output and the fact requirement, That flexible design makes more convenience to install.

Bright Design, Easy Installation and Replacement

Within the pump and flow switch, the appearance of the unit is more portable and beautiful, So you can carry it by normal elevator, no large carry it by normal elevator, no large carrying machine.This flexible design makes more convenience to install.

Advanced controlling

It is extremely easy to control the unit in the room, because of micro-computer intelligent controlling and LCD contrller. In case any of the indoor terminal fan coil is running, the unit will work automatically.

(CLICK FOR ACCESS)

PERFORMANCE PARAMETERS
MODEL
PASRW130SB-U
PASRW200SD-U
FUNTION (HEAT PUMP TYPE)
COOL/HEAT
COOL/HEAT
COOLING/HEATING CAPACITY
BTU
110000/123000
180000/190000
TYPE COMPRESSOR
SCROLL
SCROLL
NOISE LEVEL
dB(A)
61
62
WATER FLOW VOLUME
m3/h
6.0
10.5
CONSUMPTION COOL/HEAT
A
19.3 / 20
34.0 / 34.8
POWER INPUT COOL/HEAT
W
11.0 / 11.4
19.3 / 20.0
NET WEIGHT
Kg
350
535
WATER PRESSURE DROP
kPa
40
40
DIMENSION WxHxD
mm
730x1280x1450
764x1330x2150
VOLTAGE
VOLT
380
380
