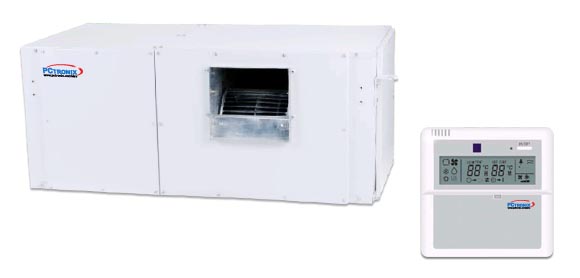

DUCT
WATER CONDESED R22
PERFORMANCE
PARAMETERS |
||||
| MODEL | WG-12L1RAA |
WG-18L1RAA |
WG-24L1RAA |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
12000/12700 |
18000/19200 |
24000/24500 |
| COMPRESSOR TYPE | ROTARY |
ROTARY |
ROTARY |
|
| NOISE LEVEL | dB(A) |
40 |
40 |
42 |
| WATER FLOW | m3/h |
1.0 |
1.2 |
1.6 |
| WATER PRESSURE DROP | kPa |
12 |
10 |
15 |
| CYRRENT (COOL/HEAT) | A |
5.0
/ 5.0 |
7.5
/ 7.5 |
10.6
/ 8.5 |
| POWER INPUT (COOL/HEAT) | W |
1100
/ 1100 |
1575
/ 1575 |
2330
/ 2250 |
| NET WEIGHT | Kg |
45 |
46 |
54 |
| DIMENSION WxHxD | mm |
950x400x500 |
950x400x500 |
1085x442x575 |
| VOLTAGE | VOLT |
220 |
220 |
220 |
