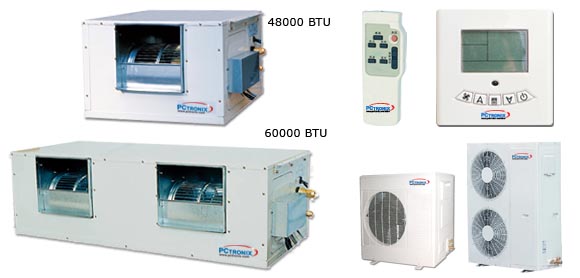

DUCT
HI PRESSURE SPLIT R22
PERFORMANCE
PARAMETERS |
|||
| MODEL | ALCe-H18A4/C |
ALCe-H24B4/C |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
48000/51100 |
60000/63600 |
| NOISE LEVEL (INTDOOR/OUTDOOR) |
dB(A) |
60
/ 62 |
60
/ 62 |
| AIR FLOW (INSIDE) | m3/h |
2700 |
3700 |
| REFRIGERANT CHARGE | gR22 |
320 |
540 |
| CONSUMPTION | A |
8.6 |
9.8 |
| RATED INPUT | W |
4500 |
5400 |
| NET WEIGHT INT/OUT | Kg |
43
/ 95 |
65
/ 150 |
| DIMENSION WxHxD INT | mm |
610x865x400 |
610x1400x400 |
| DIMENSION WxHxD OUT | mm |
420x950x853 |
420x650x1150 |
| VOLTAGE | VOLT |
380 |
380 |
