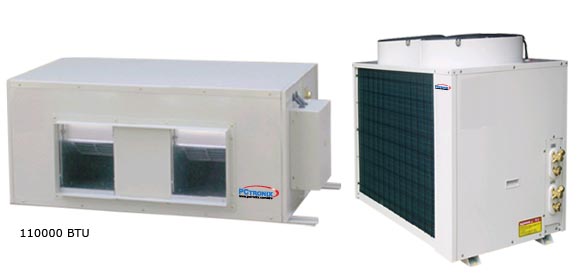

DUCT
HI PRESSURE SPLIT R22
PERFORMANCE
PARAMETERS |
||
| MODEL | PAXC(R)W130S
+ PFXC(RD)QH130 |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
110000/120000 |
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
59
/ 62 |
| AIR FLOW (INSIDE) | m3/h |
5000 |
| COMPRESSOR STYLE | SCROLL |
|
| RUNNING CURRENT (COOL/HEAT) | A |
20.0
/ 20.5 |
| POWER INPUT | W |
7200 |
| NET WEIGHT INT/OUT | Kg |
126
/ 245 |
| DIMENSION WxHxD INT | mm |
1505x730x540 |
| DIMENSION WxHxD OUT | mm |
1368x725x976 |
| VOLTAGE | VOLT |
380 |
