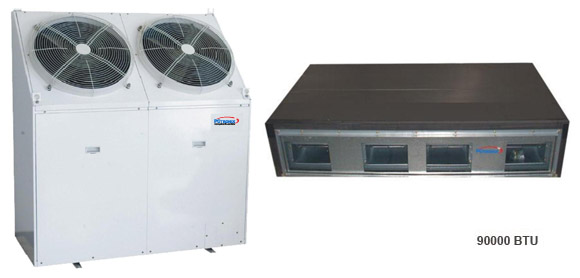

DUCT
HI PRESSURE SPLIT R22
PERFORMANCE
PARAMETERS |
||
| MODEL | ALHi-(H)90A5 |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
90000/94000 |
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
54
/ 62 |
| AIR CIRCULATION | m3/h |
4080 |
| COMPRESSOR STYLE | SCROLL |
|
| RATED CURRENT (COOL/HEAT) | A |
18
/ 18 |
| POWER INPUT (COOL/HEAT) | W |
9500
/ 9500 |
| NET WEIGHT | Kg |
95 |
| DIMENSION WxHxD INT | mm |
1690x870x360 |
| DIMENSION WxHxD OUT | mm |
1350x600x1450 |
| VOLTAGE | VOLT |
380 |
