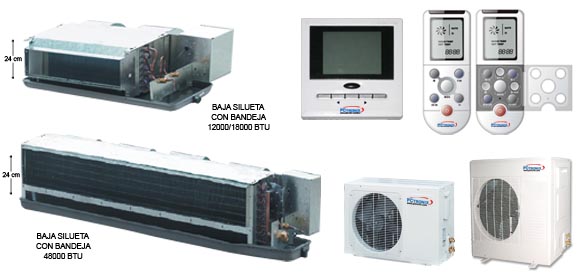

DUCT
LOW SLIM SPLIT R22
PERFORMANCE
PARAMETERS |
||||
| MODEL | ALCu-H12B4/SH |
ALCu-H18A4/SH |
ALCu-H24B4/SH |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
12000/13000 |
18000/19000 |
24000/26000 |
| TYPE COMPRESSOR | ROTARY |
ROTARY |
ROTARY |
|
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
39
/ 47 |
42
/ 52 |
43
/ 56 |
| AIR FLOW (INSIDE) | m3/h |
630 |
950 |
1300 |
| CONSUMPTION COOL/HEAT | A |
5.65
/ 5.2 |
7.95
/ 7.73 |
11.5
/ 10.7 |
| RATED INPUT COOL/HEAT | W |
1230
/ 1140 |
1750
/ 1700 |
2450
/ 2350 |
| NET WEIGHT INT/OUT | Kg |
25
/ 28 |
29
/ 32 |
41 / 44 |
| DIMENSION WxHxD INT | mm |
830x528x240 |
930x528x240 |
1355x528x240 |
| DIMENSION WxHxD OUT | mm |
760x260x540 |
760x260x540 |
800x300x690 |
| VOLTAGE | VOLT |
220 |
220 |
220 |
(CLICK
FOR ACCESS)
| MODEL |
ALCu-H36A5/SH |
ALCu-H48A5/SH |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
36000/38000 |
48000/52000 |
| TYPE COMPRESSOR | SCROLL |
SCROLL |
|
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
48
/ 60 |
51
/ 60 |
| AIR FLOW (INSIDE) | m3/h |
1600 |
2000 |
| CONSUMPTION COOL/HEAT | A |
6.6
/ 6.4 |
8.59
/ 8 |
| RATED IMPUT COOL/HEAT | W |
3590
/ 3550 |
4900
/ 4800 |
| NET WEIGHT INT/OUT | Kg |
41
/ 44 |
50
/ 53 |
| DIMENSION WxHxD INT | mm |
1355x528x240 |
1555x481x240 |
| DIMENSION WxHxD OUT | mm |
903x354x857 |
945x340x1255 |
| VOLTAGE | VOLT |
380 |
380 |
