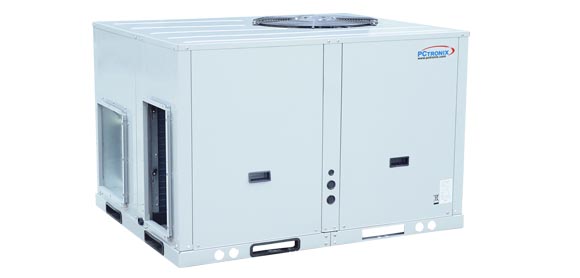

ROOFTOP
PERFORMANCE PARAMETERS
MODEL
RA-60HW
NOMINAL TONNAGE
TON
5
POWER SUPPLY
V/Hz/Ph
380 / 50 / 3

V/Hz/Ph
208 ~ 230 / 60 / 1
COMPRESOR TYPE

SCROLL
PERFORMANCE

COOL/HEAT CAPACITY
BTU/h
60000
POWER INPUT
W
6150
SEER
10
NOMINAL CFM (75Pa)
OUTDOOR
3500
INDOOR
1800
DIMENSIONS

NET
LENGTH
IN(mm)
32 - 5/8 (830)
WIDTH
IN(mm)
50 - 3/4 (1290)
HEIGHT
IN(mm)
40 - 1/2 (1030)
SHIPPING
LENGTH
IN(mm)
35 (890)
WIDTH
IN(mm)
51 - 1/8 (1300)
HEIGHT
IN(mm)
41 - 3/8 (1050)
WEIGHT

NET
Kg(lbs.)
192 (423)
SHIPPING
Kg(lbs.)
195 (430)
Qty`Per 20`/40`/40`HQ
PIECES
54
(CLICK FOR ACCESS)


FEATURES

1.- Wide capacity range, both cooling only and heat pump available

2.- Compact design

3.- Attractive appearance, outstanding anti-rust cabinet, after 1000 hours salt spray test

4.- Alternative air flow design. Side supply/side return and bottom supply/bottom return

5.- Using a durable piston as throttle device, that guarantees the system's reliable operation

6.- Hi-efficiency compressor inside, it operates smoothly and consistently, which has been proved by the long-lasting and rigid tests. It also has internal protection against potential dangerous damage. This makes the life span even longer

7.- Two-speed evaporator blower motor

8.- Reliable thermostat control: Compatible with well-known brand thermostat or special designed Midea standard thermostat
