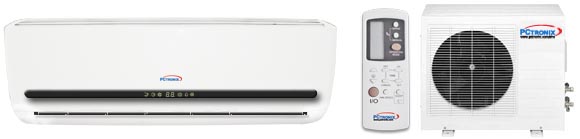

WALL
SPLIT R22
PERFORMANCE
PARAMETERS |
|||||
| MODEL | 09H53F010L3 |
12H53F230L3 |
18H53F230L3 | 24H53F230L3 |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOL/HEAT CAPACITY | BTU |
9000/9600 |
12000/13600 |
18000/19600 |
24000/25600 |
| REFRIGERANT CHARGE | gR22 |
720 |
870 |
1140 |
2100 |
| TYPE COMPRESSOR | ROTARY |
ROTARY |
ROTARY |
ROTARY |
|
| NOISE LEVEL (INT/OUT) | dB(A) |
38
/ 50 |
40
/ 51 |
46
/ 56 |
51 / 60 |
| AIR FLOW (INSIDE) | m3/h |
400 |
450 |
850 |
1100 |
| CONSUMPTION COOL/HEAT | A |
4.3
/ 4.2 |
5.6
/ 5.6 |
8.6
/ 8.3 |
13.7
/ 13.0 |
| RATED INPUT COOL/HEAT | W |
930
/ 880 |
1260
/ 1250 |
1980
/ 1920 |
2500 / 2500 |
| NET WEIGHT INT/OUT | Kg |
10
/ 26 |
10
/ 33 |
12
/ 41 |
15
/ 60 |
| DIMENSION WxHxD INT | mm |
800x290x196 |
800x290x196 |
860x292x205 |
1080x330x220 |
| DIMENSION WxHxD OUT | mm |
500x665x295 |
552x835x310 |
530x830x320 |
690x910x370 |
| VOLTAGE | VOLT |
220 |
220 |
220 |
220 |
