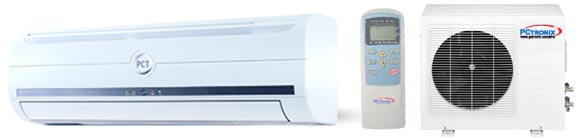

WALL
SPLIT R22
PERFORMANCE
PARAMETERS |
||||
| MODEL | TAC-09CHS/E |
TAC-12CHS-E |
TAC-18CHS/E |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
9000/9500 |
12000/12800 |
18000/19000 |
| REFRIGERANT CHARGE AMOUNT | G(R22) |
630 |
870 |
1700 |
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
35/50 |
37/52 |
42/58 |
| AIR FLOW (INSIDE) | m3/h |
430 |
530 |
800 |
| CONSUMPTION | A/W |
4.2/900 |
5.6/1200 |
9.6/2100 |
| NET WEIGHT INT/OUT | KG |
7/25 |
8/32 |
14/42 |
| DIMENSION WxHxD INT | mm |
718x240x180 |
770x240x180 |
1033x313x202 |
| DIMENSION WxHxD OUT | mm |
600x500x232 |
700x552x256 |
700x552x256 |
| VOLTAGE | VOLT |
220 |
220 |
220 |
(CLICK
FOR ACCESS)
| MODEL |
TAC-24CHS/E |
TAC-30CHS/E |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING
CAPACITY |
BTU |
24000/24500 |
30000/3200 |
| REFRIGERANT CHARGE AMOUNT | G(R22) |
2240 |
2350 |
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
49/60 |
52/62 |
| AIR FLOW (INSIDE) | m3/h |
1100 |
1200 |
| CONSUMPTION | A/W |
12/2600 |
16/3500 |
| NET WEIGHT INT/OUT | KG |
14/55 |
18/62 |
| DIMENSION WxHxD INT | mm |
1033x313x202 |
1240x325x250 |
| DIMENSION WxHxD OUT | mm |
860x660x307 |
860x660x307 |
| VOLTAGE | VOLT |
220 |
220 |
