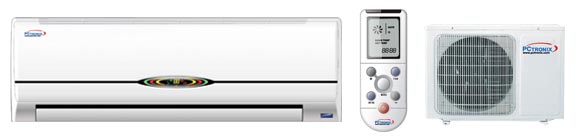

WALL
SPLIT R22
PERFORMANCE
PARAMETERS |
|||||
| MODEL | ASW-H09A4/EZ |
ASW-H12A4/EZ |
ASW-H18B4/EZ |
ASW-H24B4/EZ |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOL/HEAT CAPACITY | BTU |
9000/9560 |
12000/13000 |
18000/20000 |
24000/26300 |
| TYPE COMPRESSOR | ROTARY |
ROTARY |
ROTARY |
ROTARY |
|
| NOISE LEVEL (INT-OUT) | dB(A) |
40 / 50 |
41 / 51 |
47 / 51 |
49 / 57 |
| AIR FLOW (INSIDE) | m3/h |
420 |
540 |
840 |
1100 |
| CONSUMPTION COOL/HEAT | A |
4.4 / 4.4 |
5.9 / 5.7 |
9.5 / 9.5 |
12.3 / 12.7 |
| RATED INPUT COOL/HEAT | W |
940 / 940 |
1250 / 1220 |
2000
/ 2000 |
2550 / 2550 |
| NET WEIGHT INT/OUT | Kg |
9.6
/ 36 |
9.5
/ 41 |
16
/ 51 |
19 / 54 |
| DIMENSION WxHxD INT | mm |
250x740x205 |
250x740x205 |
312x1095x205 |
312x1095x205 |
| DIMENSION WxHxD OUT | mm |
260x760x540 |
260x760x540 |
260x760x540 |
300x800x690 |

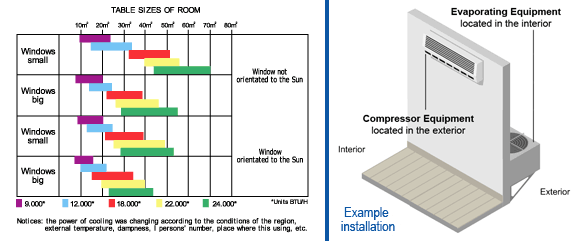

| APPLICABLE ROOM AREA | m2 |
12 ~ 17 |
14 ~ 22 |
28 ~ 35 |
35 ~ 47 |
