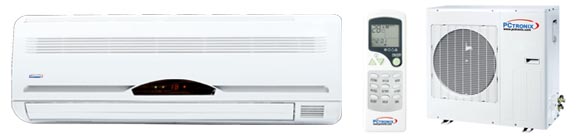

WALL SPLIT R22
| MODEL | KFR-51GW |
KFR-66GW |
KFR-88GW |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOL/HEAT CAPACITY | BTU |
18000 |
24000 |
30000 |
| REFRIGERANT CHARGE | gr(r22) |
1200 |
1900 |
2480 |
| TYPE COMPRESSOR | ROTARY |
ROTARY |
ROTARY |
|
| APPLICABLE ROOM AREA | m2 |
20 ~ 35 |
28 ~ 42 |
40 ~ 60 |
| NOISE LEVEL (INT-OUT) | dB(A) |
45 / 54 |
47 / 56 |
49 / 59 |
| AIR FLOW (INT) | m3/h |
680 |
900 |
1250 |
| CONSUMPTION COOL/HEAT | A |
9.1 / 8.9 |
10.8 / 11.2 |
13.6 / 13.0 |
| RATED INPUT COOL/HEAT | W |
1939 / 1886 |
2426 / 2516 |
3000 / 3190 |
| NET WEIGHT INT/OUT | Kg |
11 / 35 |
14.5 / 44 |
19 / 58 |
| DIMENSION LxWxH INT | mm |
875x315x680 |
795x255x510 |
850x295x605 |
| DIMENSION LxWxH OUT | mm |
1235x325x250 |
928x198x275 |
1030x313x221 |
| POWER SPECIFICATIONS | Ph / V / Hz |
220 - 240 / 50 |
220 - 240 / 50 |
220 - 240 / 50 |
