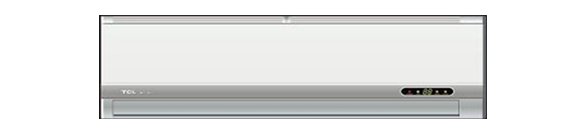

WALL
SPLIT R410
PERFORMANCE
PARAMETERS |
|||||
| MODEL | TAC-09CHSA/BH |
TAC-11CHSA/BH |
TAC-18CHSA/BH |
TAC-22CHSA/BH |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOL/HEAT CAPACITY | BTU |
9000/9500 |
11000/11500 |
18000/18500 |
22000/22500 |
| TYPE COMPRESSOR | ROTARY |
ROTARY |
ROTARY |
ROTARY |
|
| NOISE LEVEL (INT-OUT) | dB(A) |
36
/ 52 |
39
/ 55 |
48
/ 58 |
48
/ 60 |
| AIR FLOW (INSIDE) | m3/h |
430 |
550 |
760 |
1100 |
| CONSUMPTION COOL/HEAT | A |
3.9
/ 3.9 |
4.6
/ 4.5 |
8.0
/ 7.7 |
10.6
/ 10.2 |
| RATED INPUT COOL/HEAT | W |
860
/ 850 |
1050
/ 990 |
1750
/ 1690 |
2225
/ 2130 |
| NET WEIGHT INT/OUT | Kg |
7
/ 30 |
9
/ 32 |
11
/ 36 |
14
/ 59 |
| DIMENSION WxHxD INT | mm |
718x240x180 |
785x260x195 |
900x280x202 |
1033x313x202 |
| DIMENSION WxHxD OUT | mm |
700x552x256 |
760x552x256 |
760x552x256 |
902x650x307 |
| APPLICABLE ROOM AREA | m2 |
9
~ 16 |
15
~ 23 |
20
~ 35 |
30
~ 50 |
| AUTO START | SI |
SI |
SI |
SI |
|
| VOLTAJE UNIDAD INTERIOR | V/Hz |
220/50 |
220/50 |
220/50 |
220/50 |
| VOLTAJE UNIDAD EXTERIOR | V/Hz |
220/50 |
220/50 |
220/50 |
220/50 |
| GAS PIPE DIAMETER | mm |
9.52 |
9.52 |
12.7 |
16 |
| LIQ. PIPE DIAMETER | mm |
6.35 |
6.35 |
6.35 |
9.52 |
| REFRIGERANTE | R410A |
R410A |
R410A |
R410A |
|
