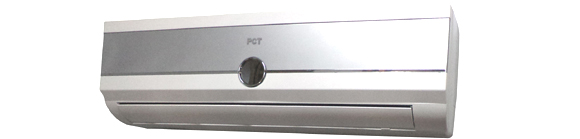

WALL
SPLIT R410
PERFORMANCE
PARAMETERS |
|||||
| MODEL | TAC-09CHSA/L |
TAC-12CHSA/L |
TAC-18CHSA/L |
TAC-24CHSA/L |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOL/HEAT CAPACITY | BTU |
9000/9500 |
12000/12500 |
18000/18500 |
24000/24500 |
| TYPE COMPRESSOR | ROTARY |
ROTARY |
ROTARY |
ROTARY |
|
| NOISE LEVEL (INT-OUT) | dB(A) |
36
/ 52 |
39
/ 55 |
48
/ 58 |
48
/ 60 |
| AIR FLOW (INSIDE) | m3/h |
430 |
530 |
760 |
760 |
| CONSUMPTION COOL/HEAT | A |
4.4
/ 4.3 |
5.8
/ 5.8 |
9.8
/ 8.6 |
13.2
/ 12.32 |
| RATED INPUT COOL/HEAT | W |
970
/ 950 |
1280
/ 1270 |
2150
/ 1900 |
2900
/ 2700 |
| NET WEIGHT INT/OUT | Kg |
7
/ 25 |
8
/ 30 |
11
/ 36 |
11
/ 52 |
| DIMENSION WxHxD INT | mm |
718x240x180 |
770x240x180 |
900x280x202 |
900x280x202 |
| DIMENSION WxHxD OUT | mm |
600x500x232 |
700x552x256 |
760x552x256 |
902x650x307 |
| APPLICABLE ROOM AREA | m2 |
9
~ 16 |
15
~ 23 |
20
~ 35 |
30
~ 50 |
