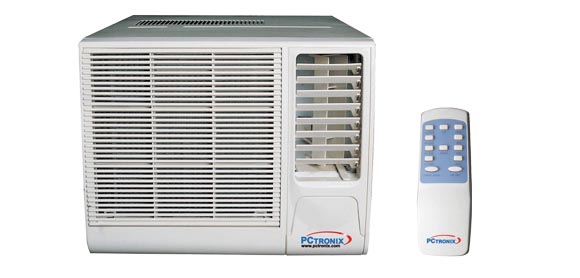

WINDOW
R22
PERFORMANCE
PARAMETERS |
||||
| MODEL | KCR-25/Y ACSH09VR22 |
KCR-35/Y
ACWP12VR22 |
KCR-50/Y
ACSH18VR22 |
|
| FUNTION (HEAT PUMP TYPE) | COOL/HEAT |
COOL/HEAT |
COOL/HEAT |
|
| COOLING/HEATING CAPACITY | BTU |
9000/9000 |
12000/12000 |
18000/18000 |
| TYPE COMPRESSOR | ROTARY |
ROTARY |
ROTARY |
|
| NOISE LEVEL (INTDOOR/OUTDOOR) | dB(A) |
47
/ 50 |
51
/ 53 |
54
/ 57 |
| AIR FLOW (INSIDE) | m3/h |
450 |
540 |
800 |
| CONSUMPTION COOL/HEAT | A |
4.7
/ 4.4 |
6.6
/ 6.1 |
9.4
/ 8.7 |
| RATED INPUT COOL/HEAT | W |
1000
/ 930 |
1400
/ 1300 |
2000
/ 1850 |
| NET WEIGHT | Kg |
36 |
45 |
67 |
| DIMENSION WxHxD | mm |
520x340x540 |
560x375x600 |
670x455x730 |
| COVERED AREA | m2 |
10
a 25 |
10
a 35 |
15
a 50 |
| VOLTAGE | VOLT |
220 |
220 |
220 |
